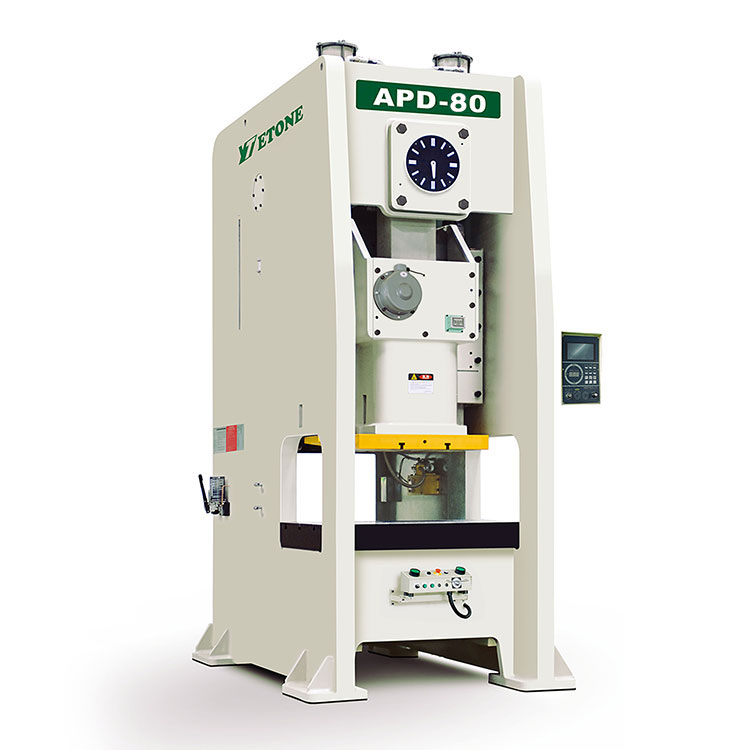

The straight slide press is a mechanical equipment commonly used in metal forming, plastic processing, forging and other fields. Its main function is to form or process materials through pressure. There are usually the following ways to adjust the straight slide press:
Stroke adjustment: By adjusting the stroke of the press, the up and down movement range of the mold can be changed to meet the processing requirements of different heights. Stroke adjustment usually has two modes: manual and automatic. The appropriate stroke can be selected according to the process requirements.
Pressure adjustment: Adjust the working pressure of the press to meet the processing requirements of different materials or workpieces. Common pressure adjustment methods include adjusting the oil pressure system, air pressure system or electric drive system.
Speed adjustment: The movement speed of the straight slide press can be adjusted according to processing needs. By adjusting the flow of the pump, the opening of the valve, etc., the downward pressing speed or retraction speed of the press can be changed. There are two common ways of speed adjustment:
Fast feed: used to quickly approach the initial position of the workpiece.
Low speed pressure: used for the working stage of precise pressure application.
Buffer adjustment: In order to reduce impact force and improve work efficiency, the straight slide press can be equipped with a buffer device. Adjusting the degree of buffering can reduce the vibration and noise of the press during operation, while avoiding damage to the mold or workpiece.
Mold gap adjustment: The adjustment of the mold gap is crucial to processing accuracy and workpiece quality. By adjusting the gap between the molds, the degree of compression of the material can be controlled to obtain the desired shape and size.
Stroke end adjustment: Some presses allow the end of the stroke to be adjusted, that is, the height at which the slider reaches the bottom. This can be achieved by setting limit switches or adjusting the mechanical structure to ensure that the desired end position is reached during processing.
Automatic control system: Modern straight slide presses are also equipped with digital control systems, which are precisely adjusted through PLC or CNC control systems. This control system can monitor parameters such as pressure, stroke and speed in real time, and automatically adjust according to process requirements, thereby improving processing accuracy and efficiency.
These adjustment methods help optimize the performance of straight slide presses to meet the needs of different materials, processes and products, improve production efficiency and ensure processing quality.
